The PhysioMill rehabilitation treadmill has a heavy duty 4 HP Hi-Torque DC Servo motor specifically designed to offer a true zero start with .10 mph increments for patients up to 500 lbs., with speeds up to 15 mph.
The extremely versatile PhysioMill rehabilitation treadmill has a reverse belt mode with 15 percent elevation allowing for downhill negative walking.
The 500 lb. weight capacity and the 20” x 63” walking belt allows the PhysioMill to be used in a variety of clinical settings such as Neurological, Orthopedic, Sports Medicine, Cardiac Rehab, Bariatrics and Pediatrics.
The PhysioMill rehabilitation treadmill comes standard with; short handrails, dual emergency stop buttons, hand held remote start/stop/pause, orthopedic walking belt and contact heart rate.
The PhysioMill may be the last rehabilitation treadmill you will ever need to purchase. “Over built and built to last!”
| Technical Details |
| Drive System |
4 HP Continuous-Duty DC Servo Motor |
| Belt Direction |
Foward and Reverse Direction |
| Running Surface |
22" W x 63" L (56cm x 160 cm) |
| Belt |
1" (2.5 cm) Thick Reversible Belt |
| Treadmill Deck |
Four-Ply ErgoDeck Shok Absorption System |
| Treadmill Rollers |
3.5" (8.9 cm), 22 lbs (10 kg) Steel Rollers |
| Speed Forward |
0.1 - 12 MPH (0 - 19.2 kph)*True Zero Start |
| Speed Backward |
0.1 - 3 MPH (0 - 4.8 kph) *True Zero Start |
| Speed Increments |
0.1 Speed Adjustment Increments |
| Incline Range |
0 - 15% |
| Max User Weight |
500 lbs. |
| Deck Height |
Only 6.25" (16.5 cm) Step-Up |
| Emergency Stop |
Dual Emergency Stop Buttons & Safety Lanyard |
| Hand-Held Remote |
Therapist Start-Stop |
| Domestic Power |
120 VAC, 60Hz, 15 A |
| International Power |
220 VAC, 50/60Hz, 15 A |
| Product Type |
Commercial Grade |
| Treadmill Model # |
TMR |

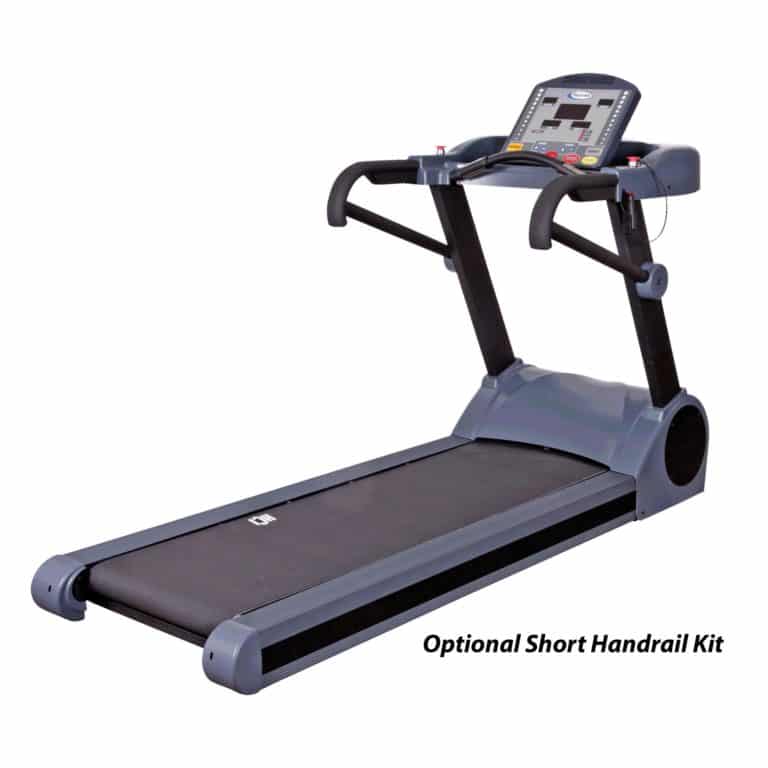

Short Handrail Kitl #
*Optional |
TMR-HR |
| Computer Details |

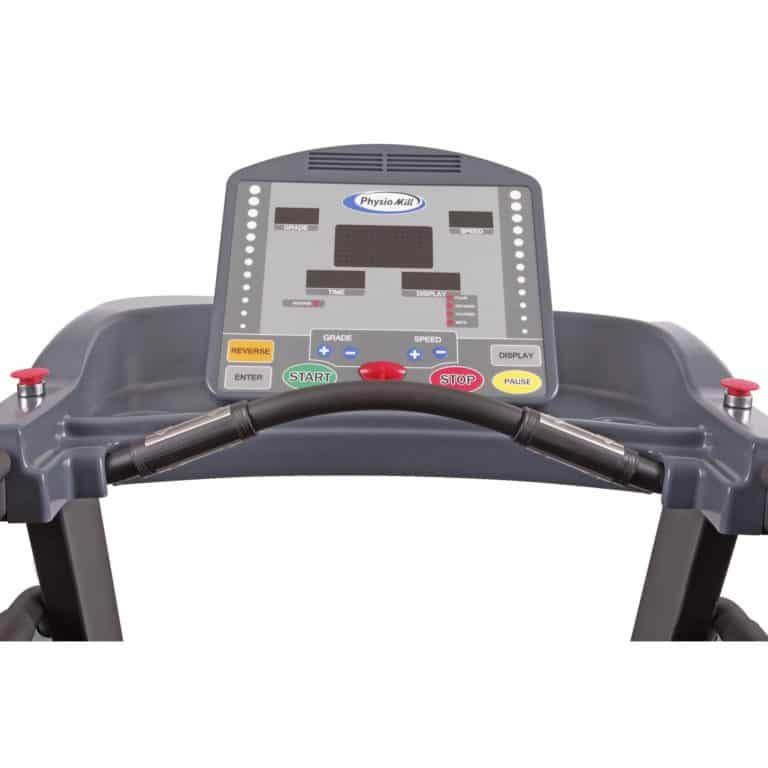

| Display |
High Definition 9" LCD Display |
| Backlight |
Easy to Read High Contrast Blue |
| Feedback |
Speed, Time, Distance, Grade, Pulse, Calories, METS & Reverse |
| Heart Rate |
Contact Heart Rate on Seat Handles & Built in Receiver Compatible with Polar and other Manufactures
*Chest Belt Not Included |
| *Light Instiutional Warranty *Exludes heavy use pay-for-membership facilities including health clubs, gyms, and YMCAs |
| Frame |
Lifetime |
| Motor |
5 Years |
| Tread Belt |
5 Years |
| Mechanical & Electronic Parts |
5 Years |
| Wearable Parts |
1 Year |
| Labor |
1 Year |
| Shipping & Assembly |
| Shipping |
Freight |
| Assembly Required |
Support Arms, Display, Side Rails |
| Unit Dimensions |
| Compact Dimensions |
81" L X 30.5" W X 54" H
W/ Medical Handrails 87" L x 36" W x 54" H |
| Unit Weight |
345 lbs. |
