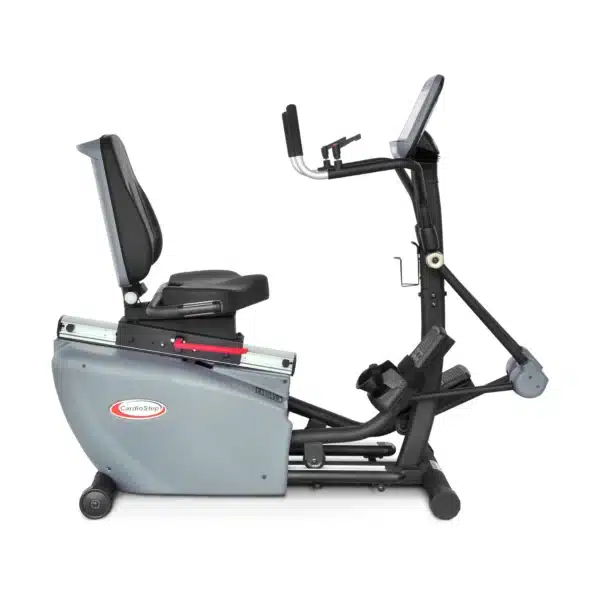

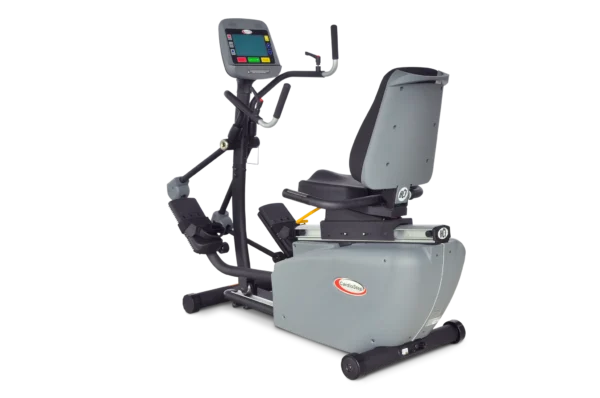

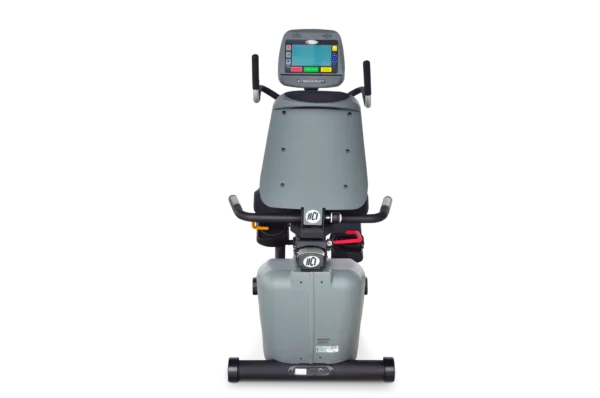

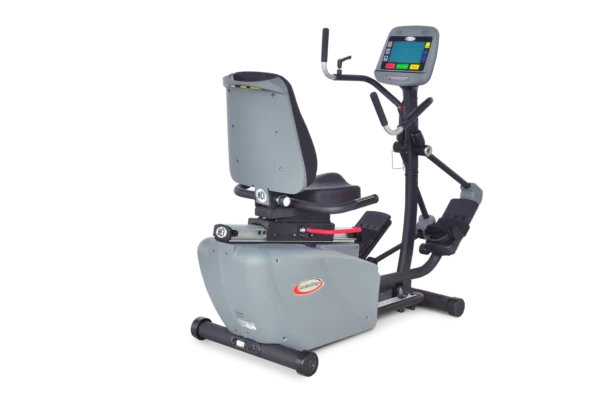

CardioStep Recumbent Elliptical Cross Trainer with Swivel Seat

We offer 24 months interest free financing. Contact to learn more.
All purchases from Gym Tech come with complimentary personal training from GymGuyz, the #1 at home personal training service.


CALL 866-496-8324
Visa Mastercard American Express PayPal Diners Club Discover

Why Buy With Gym Tech?

Expert Team
Delivery & Install
Certified Techs
0% Financing
Extended Warranty
Great Reviews
Gym Tech HCI Fitness Logo 250x100

2021 Updates : Swivel Seat – Commercial Grade Display – 32 Levels of Resistance

CardioStep Recumbent Semi-Elliptical Cross Trainer provides an easy & effective total body cardio workout. The semi-recumbent sitting position combines stability and comfort with the smooth and natural feel of an elliptical. The semi-elliptical motion allows for natural biomechanics with zero impact to the user’s joints.  The unique, ascending arm motion provides bilinear resistance with ergonomic, rotating hand grips. Users can target different muscle groups by rotating the handle position to different angles.

The CardioStep has a large seat that swivels to either side and a low 9” step through height that makes it easy for all fitness levels to transfer on and off the machine. The 20” wide memory foam seat offers comfort and stability while using the CardioStep.  In addition, the seat back has 3 reclining angles that the user can select.

Featuring a 9” LCD display with 32 levels of resistance and 19 workout programs the CardioStep Recumbent Semi-Elliptical Cross Trainer is designed for a wide range of users.  The CardioStep also includes contact heart rate on the seat handles and heart rate controlled workout programs.  The display workout data shows Time, Distance, Steps per Minute, WATTs, METs, Total Steps, Pulse, and the Resistance Level.  When you are done with your workout, download your workout report to a USB allowing users to track their progress and share their results.

The CardioStep Recumbent Semi-Elliptical Cross Trainer is rated for full commercial use and is backed by an industry leading parts and labor warranty. Built with high quality commercial components and available at an affordable price the CardioStep Recumbent Semi-Elliptical Cross Trainer is perfect for commercial, medical, rehabilitation or home applications.

New Upgraded Display


 4’9″ to 6’2″


450 lbs



10″ Stride Length

Low Impact Semi-Elliptical  Contralateral Arm and Leg Motion.


360° Swivel Seat for entrance from the left or right side.Having a swivel seat on your recumbent cross trainer not only makes it easier to get on and off the machine, it also protects your investment ensuring that you will be able to continue to use your CardioStep for years to come.



Built-in contact heart rate and heart rate control programs.

Essential to all rehabilitation exercises, the CardioStep features heart rate sensors in the handle of the machine. Your heart rate is clearly displayed on the screen so you can track your health and fitness goals.

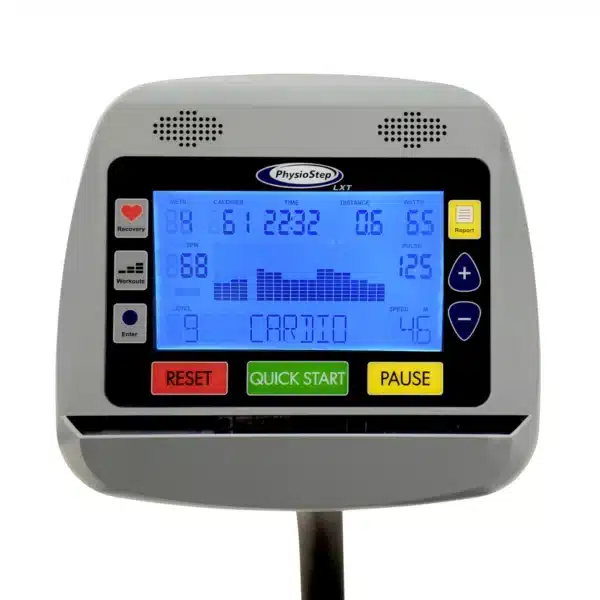

The CardioStep has a 9″ LCD display with 19 Programs and a easy QuickStart Button.

With 32 levels of electronic resistance, the CardioStep’s resistance can be adjusted with a touch of a button.  The CardioStep has a low starting resistance and manageable increments allowing users to gradually increase resistance.

View More Images

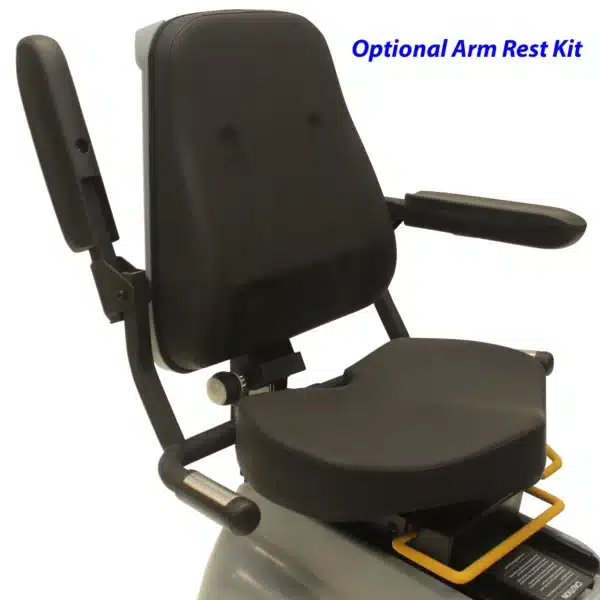

Add comfort and security to the CardioStep by purchasing the optional folding arm rest kit.

Add to your order for $300

$350 Value, Order Now and Save

Use the dropdown menu at the top of this page to select the option to add Arm Rests to your CardioStep.


HealthCare International is proud to be one of the longest standing family owned and operated fitness equipment manufacturers based in the USA!


Please note that ALL HCI Fitness products qualify for the “Buy American Act”.


3 Year Parts

1 Year Labor

Lifetime on the Frame


CardioStep is the ONLY brand of Recumbent Cross Trainers in its class that is both CE safety certified and registered with the FDA as class one medical devices.

HCI Fitness does not provide medical advice, diagnosis or treatment


About HCI Fitness



View  our nationwide white glove assembly options at checkout.


Wide range of resistance from a low starting resistance to a challenging workout.


Controlled RPM recovery training.


Used by Physical Therapists and Nurses around the World.


4″ Tick Memory Foam Extra Wide 20″ Memory Foam Seat with Contoured Reclining Seat Back.


Record workout reports and track patient progress including METS, WATTS, Total Steps, Time, Duration and more.


The assembled size of the CardioStep is 64″ x 27″. About the size of a recliner chair.


The CardioStep is backed with a Lifetime Frame, 3 Year Parts, and 1 Year Labor warranty.


CardioStep Technical Details
Swivel Seat 20″ Over sized Seat Rotates 360° for Easy Access
Contact Heart Rate Built in heart rate monitor in the seat handles
Seat Position Fully Adjustable Forward and Backward (14 seat positions)
Resistance System Smooth
Resistance Levels 1-32
Programs 19 Set Programs and QuickStart (See Computer Details)
Total Body Workout Smooth Semi-Elliptical Pedaling with Connected Arms
Arm System Fully Adjustable Rotating Handles
Pedals Oversized with Deep Heal Cups & Ergo Straps
Stride Semi-Elliptical Motion
Stabilization Kit Optional View Details
Max User Weight 450 lbs.
Power AC 110V-220V | 50/60Hz
Product Type Commercial Grade
Model # CS-600
Computer Details
Display High Definition 9″ LCD Display
Quick Start Easy Quick Start Button
Tilting Display Adjusts to keep your goals in sight
Backlight Easy to Read High Contrast LCD
USB Summary Export Workout Data Including Peaks and Averages
Feedback Time, Distance, Pulse, Steps Per Minute (SPM), Calories, WATTS,
METs, Total Steps (PAUSE) & Resistance Level “1-32”
Programs 19 Programs: Manual, Warm Up, Interval, Valley, Ramp, Mountain, Rolling, Climb, Random, Hill, Fat Burn, Cardio, Strength, HRC 65%, HRC 85%, ISOKENTIC,
Constant Power (WATTS), Goal Calories, Goal Distance
Heart Rate Built in Contact Heart Rate in Seat Handles
Frame Lifetime
Mechanical Parts 3 Years
Electronic Parts 3 Years
Labor 1 Year
Shipping & Assembly
Shipping Freight
Optional White Glove Assembly Ask about out white glove assembly options to help get your unit installed.
Assembly Required Seat, Arms, Display
Unit Dimensions
Compact Dimensions 64″ L X 27″ W X 51″ H
Unit Weight 200 lbs.


Additional Information

Additional information

Gym Tech Fitness product manuals can be downloaded from our dedicated Fitness Equipment Manuals Page.
